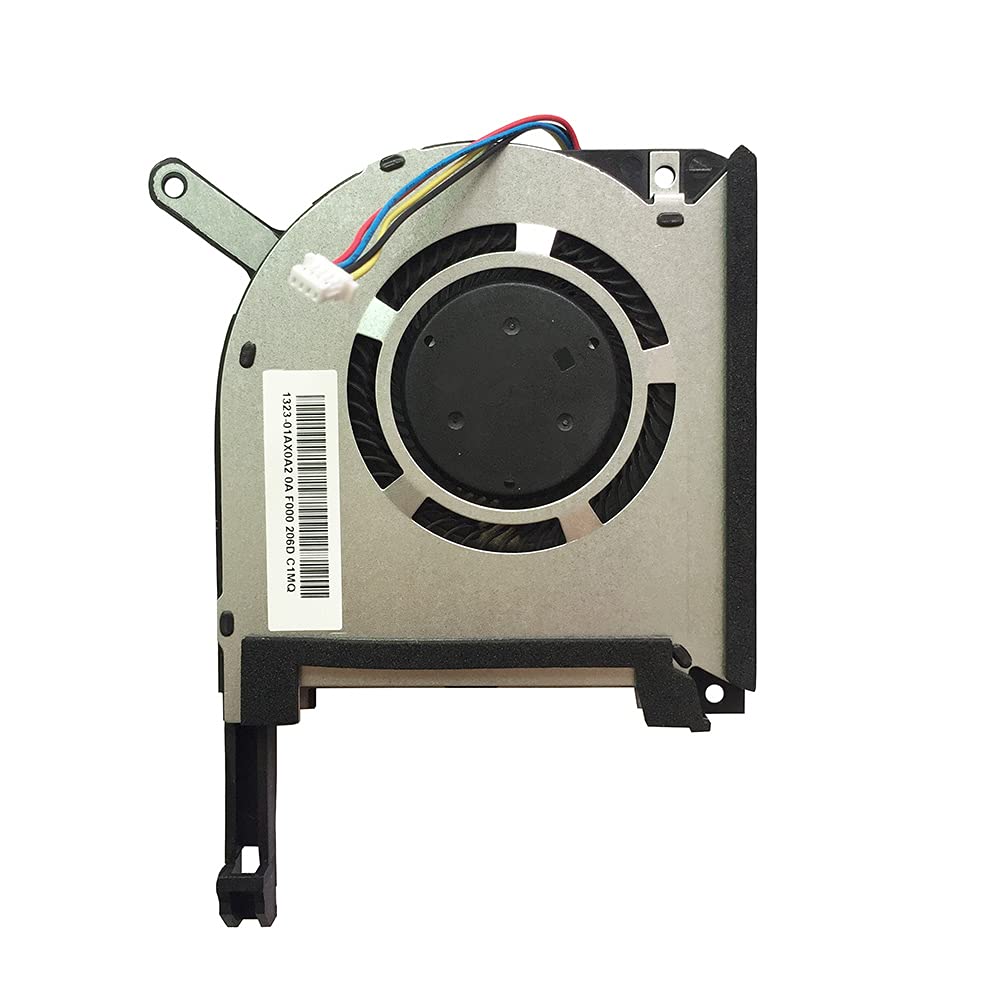

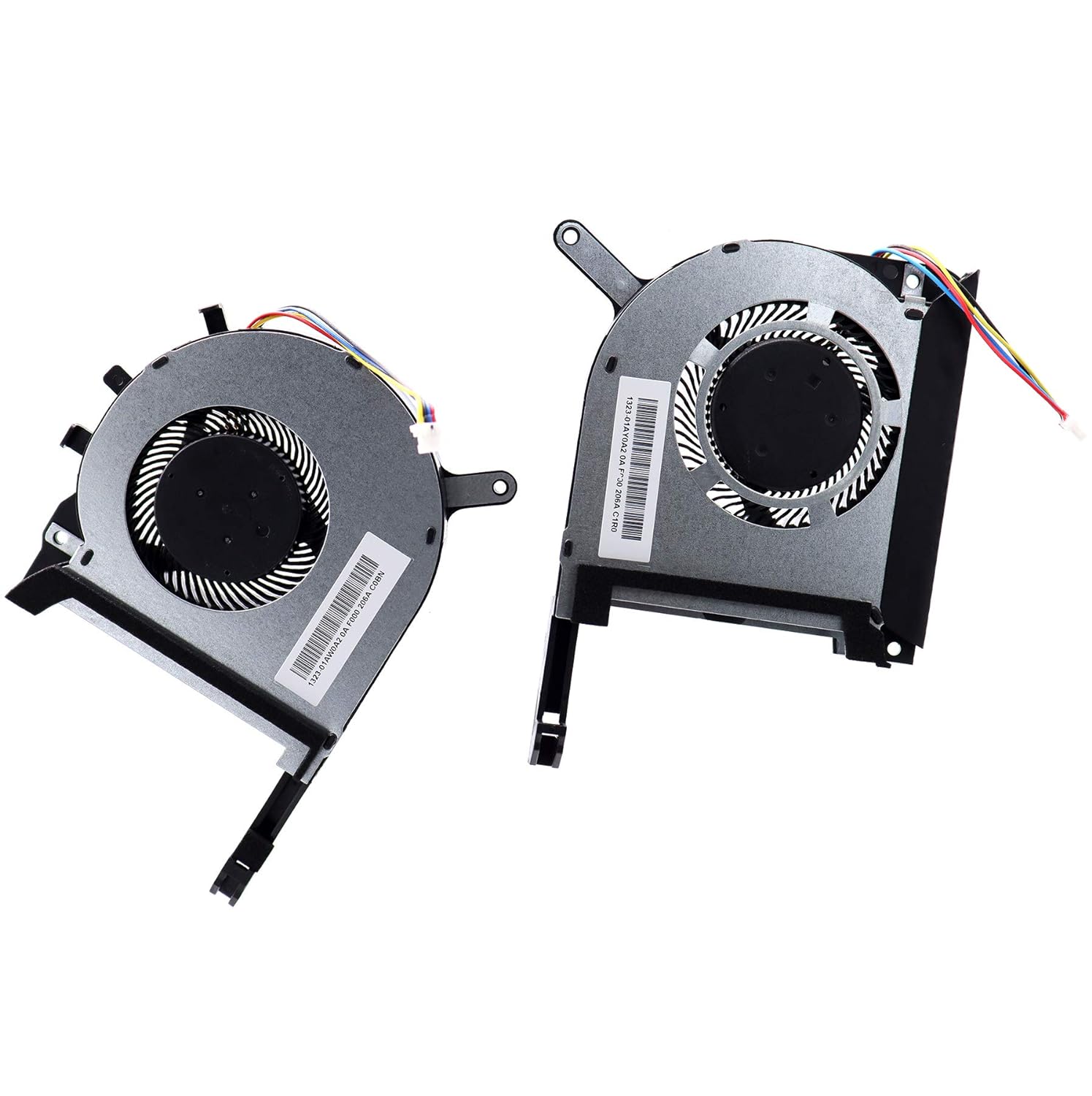

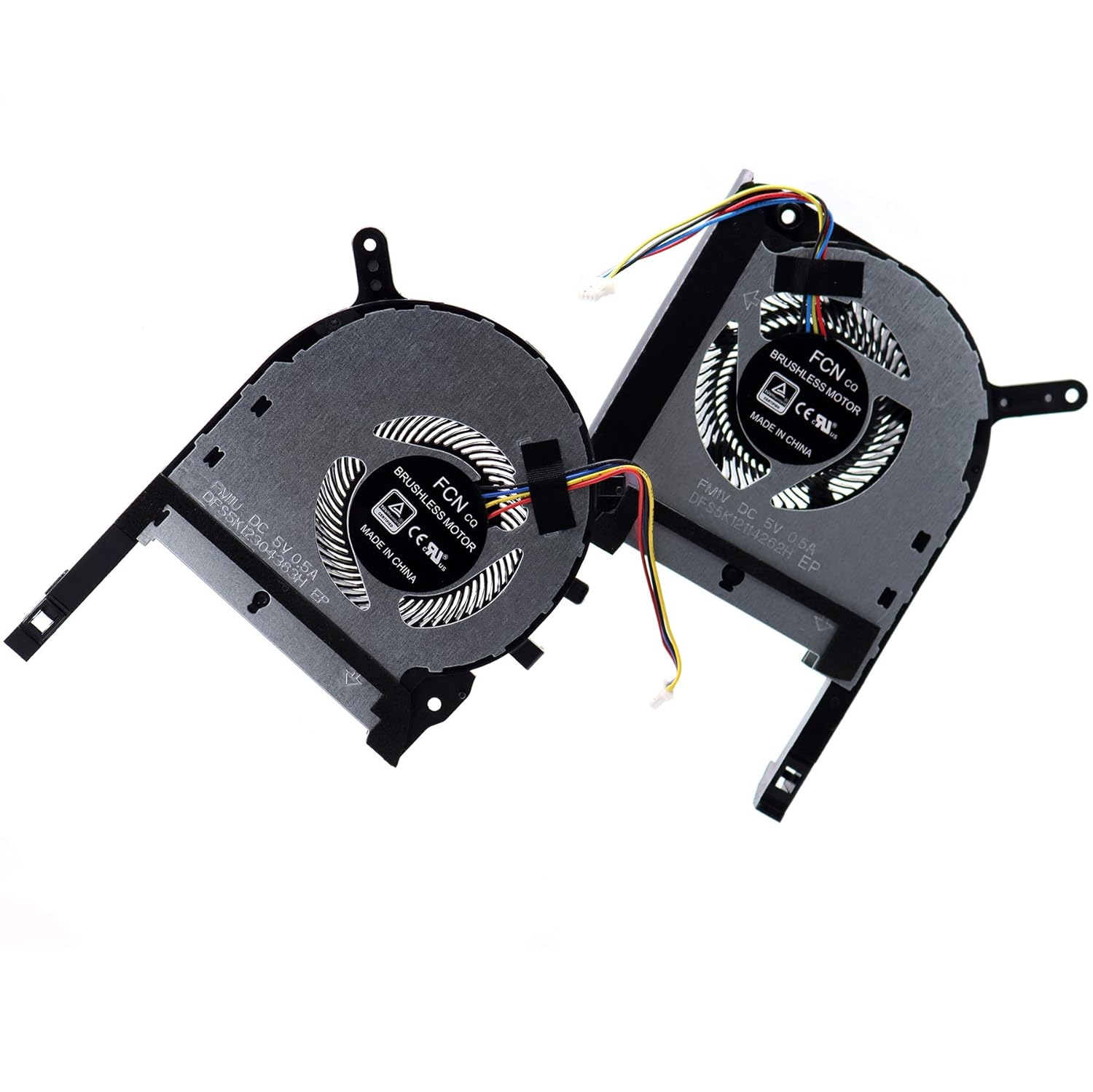

OEM Cooling Fan for the TUF Gaming series FX505 FX705 FX506 FX706 FA506 FA706 laptop series, this is the cooling fan for CPU processor and GPU Graphics card.
The fan uses an integrated flex cable to connect to the mainboard. The cable connects via 4-pin connector making it a plug and play replacement module, NO soldering is required.
GPU Fan Compatible Part Number(s): DFS5K12114262H FMC9, 13NR00S0M12011, DFS5K2211533718, DQ5D577E009
CPU FAN Compatible Part Number(s): DFS5K12304363H FMLB, 13NR07A0M02011, 13NR00S0M09011, DFS5K22B056738
Specifications:
Direct Current: DC 5V / 0.5A
Power Connection: 4-pin 4-Wires, Wire-to-Board
NOTE: The Screw NOt included, Please retain the original screw for the installation of this part.
Reference list of compatible with Laptop models:
- FX506 series: FX506HF-ES51, FX506HEB-RS53, FX506LH-AS51, FX506LI-BI5N5, FX506HC, FX506HCB, FX506HE, FX506HEB, FX506HF, FX506HM, FX506IHR, FX506LH, FX506LI …
- FX566 series: FX566LH-HN257T, FX566HC, FX566HCB, FX566HM …
- FX706 series: FX706LI-RS53, FX706HCB-ES51, FX706HC, FX706HCB, FX706HE, FX706HF, FX706HM, FX706LI …
- FX766 series: FX766HCB …
- FA506 series: FA506IH-AS53, FA506IHR-US51, FA506QE-SB54, FA506IC, FA506IV, FA506ICB, FA506IE, FA506IH, FA506II, FA506IHR, FA506IHRB, FA506NC, FA506NF, FA506Q, FA506QE, FA506QM, FA506QR …
- FA566 series: FA566IC …
- FA706 series: FA706IH-RS53, FA706IC, FA706IE, FA706IH, FA706II, FA706IHR, FA706IHRB, FA706NF, FA706QE, FA706QM, FA706QR …
- FX505 series: FX505DT-AH51, FX505DD-DR5N6, FX505DD, FX505DV, FX505DT, FX505DU, FX505DY, FX505G, FX505GD, FX505GE, FX505GT, FX505GM, FX505GU, FX505LH …
- FX705 series: FX705DD, FX705DT, FX705DY, FX705GD, FX705GE, FX705GM, FX705DU …
FX565 series: FX565GM … - FX86 series: FX86SY, FX86SE, FX86FM, FX86FE, FX86SM, FX86FD …
- TUF506 series: FX706HCB-ES51, TUF506HC, TUF506HCB, TUF506HCNT, TUF506HE, TUF506HEB, TUF506HF, TUF506HM, TUF506IC, TUF506ICB, TUF506IE, TUF506IHNT, TUF506IHR, TUF506QE, TUF506QM, TUF506QR …
- TUF566 series: TUF566HC, TUF566HCB, TUF566HE, TUF566HM, TUF566QM, TUF566QR …
- TUF706 series: TUF706HC, TUF706HCB, TUF706HCNT, TUF706HE, TUF706HEB, TUF706HF, TUF706HM, TUF706IC, TUF706ICB, TUF706IE, TUF706IHNT, TUF706IHR, TUF706QE, TUF706QM …
- TUF766 series: TUF766HC, TUF766HCB, TUF766HE, TUF766HEB, TUF766HM, TUF766QM, TUF766QR …
- PX706 series: PX706QM …
- PX705 series: PX705GD …
- PX505 series: PX505GD, PX505GE …
- TUF505 series: TUF505DD, TUF505DT, TUF505DY, TUF505GD, TUF505GE, TUF505GT …
- FX95 series: FX95G FX95D
- ZX86 series: ZX86F
- FZ86 series: FZ86F
- F705 series: F705DT
